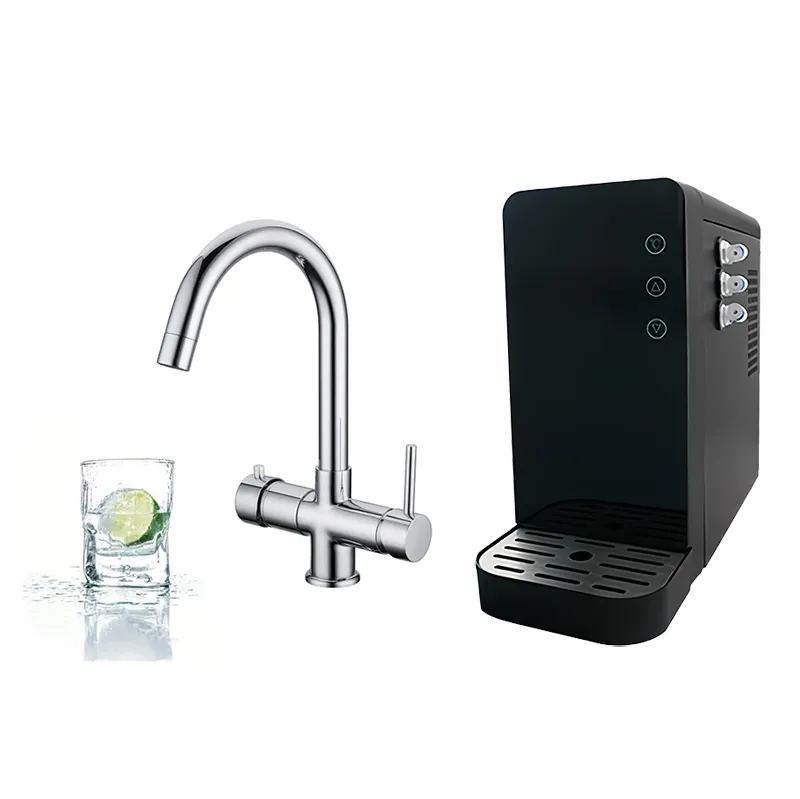

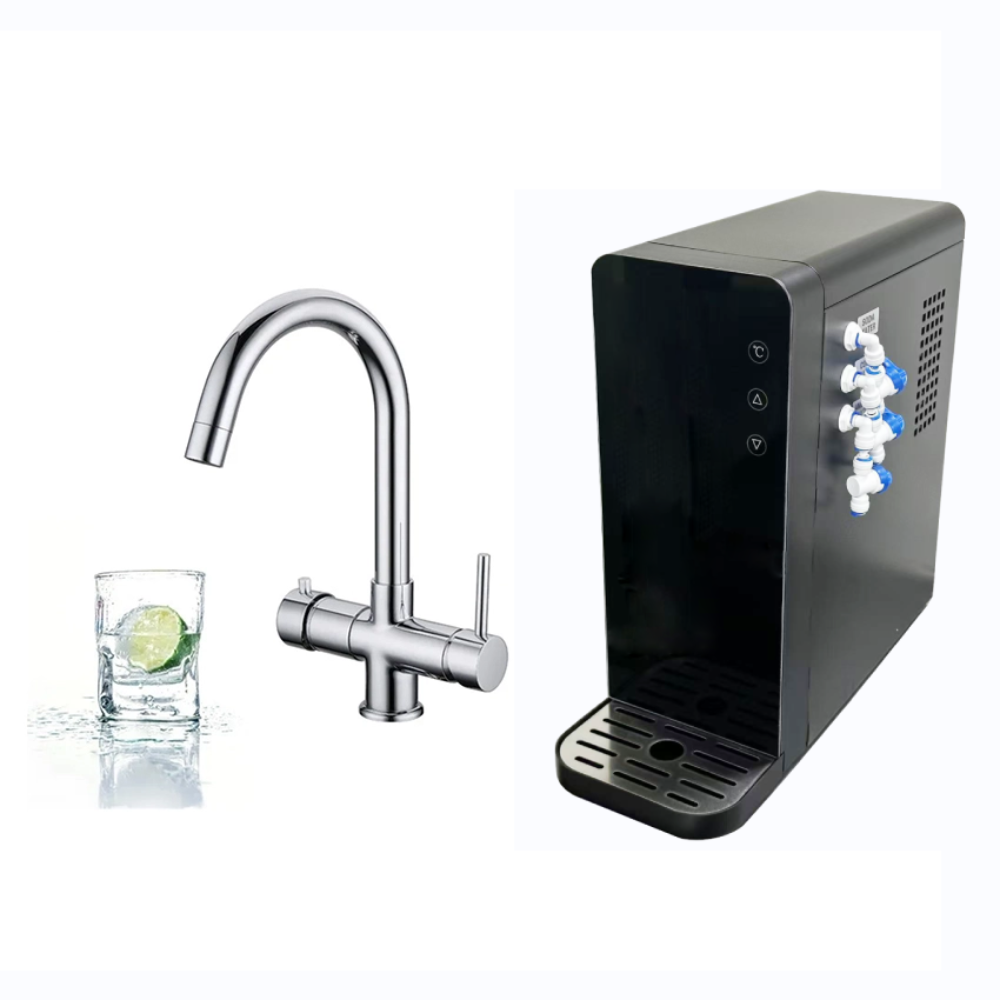

Enjoy chilled sparkling water, chilled filtered water, regular hot water, and cold water from one modern kitchen faucet.
The Liliumfaucet under-sink sparkling water dispenser is designed for homeowners, offices, cafés, and modern kitchens that want fresh sparkling water on tap without adding extra countertop appliances or additional faucets.
With the included 5-way kitchen faucet, you can connect your normal hot and cold water lines together with chilled water and sparkling water functions. This means you do not need to install a separate drinking water faucet or an extra sparkling water tap on your sink.
Why Choose This 5-Way Sparkling Water Dispenser?
Multi-Function 5-Way Faucet: Our innovative 5-way faucet is designed to filter water and dispense chilled water, soda water, as well as regular hot and cold water. It’s an all-in-one solution that meets all your hydration needs.
High-Efficiency Cooling: This Sparkling Water Dispenser boasts a highly efficient cooling system. It provides instant chilled and carbonated water with an impressive capacity of 6-8 liters per hour (10°C). Despite its power, it consumes very little energy when idle, making it an eco-friendly choice.
Dual Installation Options: Whether you need a countertop unit or an under-counter installation, this dispenser is perfect for both. It connects seamlessly to the 3-way or 5-way faucet installed on your countertop or kitchen sink, offering flexibility and convenience.
Wide Application: Ideal for home, office, and commercial use, such as in coffee shops. This versatile dispenser is suitable for various environments, ensuring you always have access to fresh, filtered, and carbonated water.
Easy Installation & Full Adjustability: Installation is a breeze, and the unit comes with an integrated digital temperature controller. You can adjust the water temperature between 0.5-10°C (33-50°F) and control the carbonation levels from 0.5 to over 5 volumes, allowing you to enjoy super sparkling water tailored to your preference.
Customer video: our sparkling water dispenser connected to our pull-out 5-way faucet. Faucets are available for separate purchase.
Specifications
Rated voltage:
110V-120V AC 50Hz, 220V-240V AC 50Hz
Model:
LF-SSCH5301
Cooling system power:
100W
Cooling capacity
6L
The volume of CO2 in the soda water:
first cup > 3.4%(6.7gr/L)
Soda water capacity:
1L/TIME (6-8L/Hour)
Cold water capacity:
300ml each time
Water inlet ambient temperature:
10-32 ℃
Water inlet pressure (after filtration)
2-3 bar (30-45 PSI )

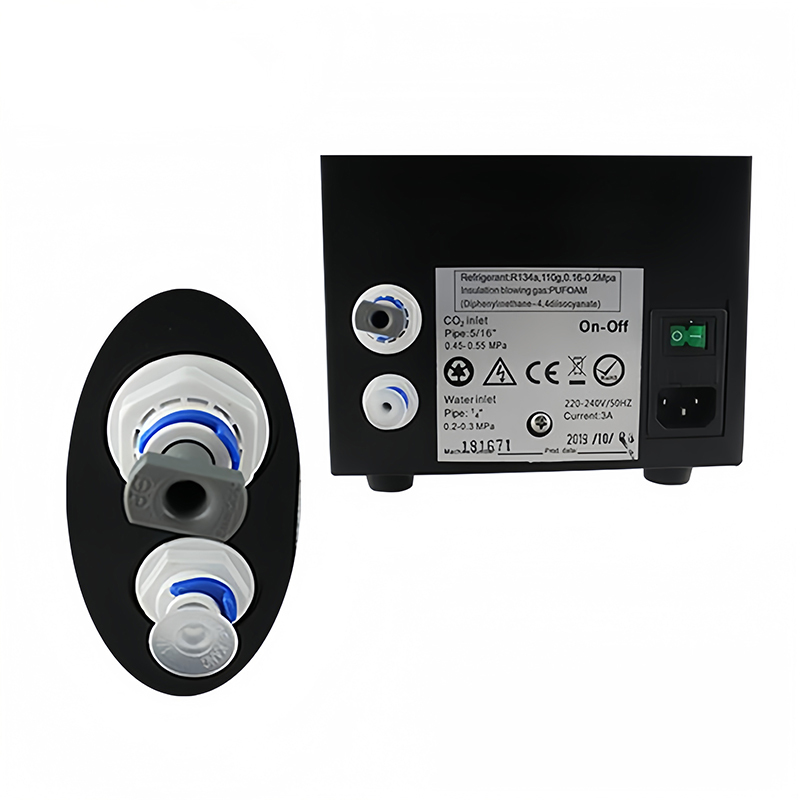

The inlet gas pressure
4.5-5.5 bar
CO₂ gas pressure inlet:
5.0-6.0 bar (73-87 PSI)
NW/GW:
18.5 kg / 20.5 kg.
Product size
440x170x480mm
Screw
SUS 304
Water filter level
≤5m
Warranty period
2 Years
Certificate
CE, RoHS, ETL
What You Need Before Installation
Please check the following before placing your order:
A suitable under-sink space for the dispenser A power outlet under the sink A food-grade CO₂ cylinder A CO₂ pressure regulator A water filter or existing under-sink drinking water filter Enough ventilation space behind the machine Correct faucet hole size and water fitting size
Please note: CO₂ cylinder, CO₂ regulator, and water filter are not included by default.
What’s Included:
Under-sink sparkling water dispenser unit
5-way kitchen faucet
Installation accessories
User guide
4 PCS 1/4” LDPE hose
4 PCS 1/4" Ball valve
1 PCS 5/16” LDPE hose
1 PCS 5/16” Ball valve
6 metres of heat-insulating material
CO₂ Setup
The CO₂ bottle, CO₂-reducing valve, and water filter are not included. All brands and sizes of CO₂ cylinders on the market are compatible, with food-grade CO₂ recommended. The regulator inlet pressure should be between 4.5-5.5 kg (65-80 psi); higher pressure may pose certain risks. Please choose a regulator with a 5/16'' connection. We use a universal connection hose size that fits all brands of water filters.
Installation Instruction
Download Under-ink Carbonated Water dispenser installation instructions: Click here
Why a 5-Way Faucet Is Better
A traditional sparkling water system may require a separate faucet only for filtered or sparkling water. This can make the sink area crowded and may require additional countertop drilling.
The 5-way faucet solves this by combining regular kitchen water and drinking water functions in one faucet.
With one faucet, you can access:
Hot water for normal kitchen use
Cold water for washing and daily use
Filtered water for drinking
Chilled still water for refreshing drinks
Chilled sparkling water for daily enjoyment
This makes installation cleaner and daily use easier.
Installation Recommendations
Installation is simple — most of our customers complete it within 60 minutes. For best performance, please make sure:
The water supply pressure is stable
The system has enough ventilation space
The CO₂ connection is secure
The water filter flow is strong enough
The dispenser is installed upright under the sink
The faucet and tubing are connected according to the installation guide
Avoid using very low-flow filtration systems that may not supply enough water to the dispenser.
